1583-1208
1170mm / 46” Clutch cable for Terex 2 to 3 tonne dumper approx. year 1992 – 2001.
(Full description below)
Clutch cable 2-3 ton Terex approx 1992-2001
£78.85
26 in stock (more available to order)
26 in stock (more available to order)
Description

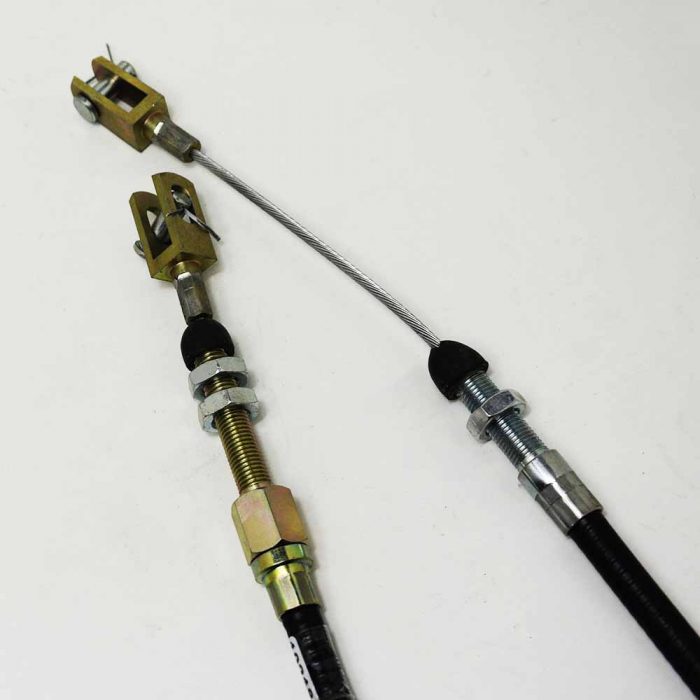

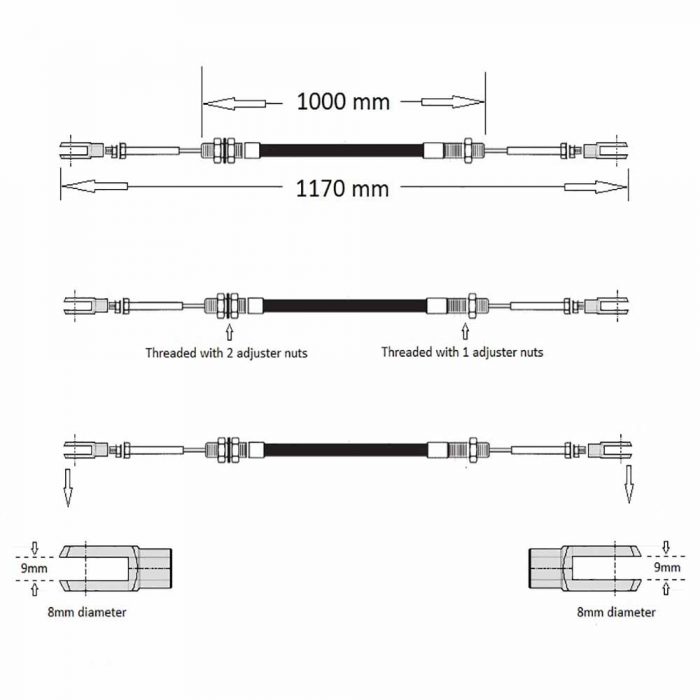

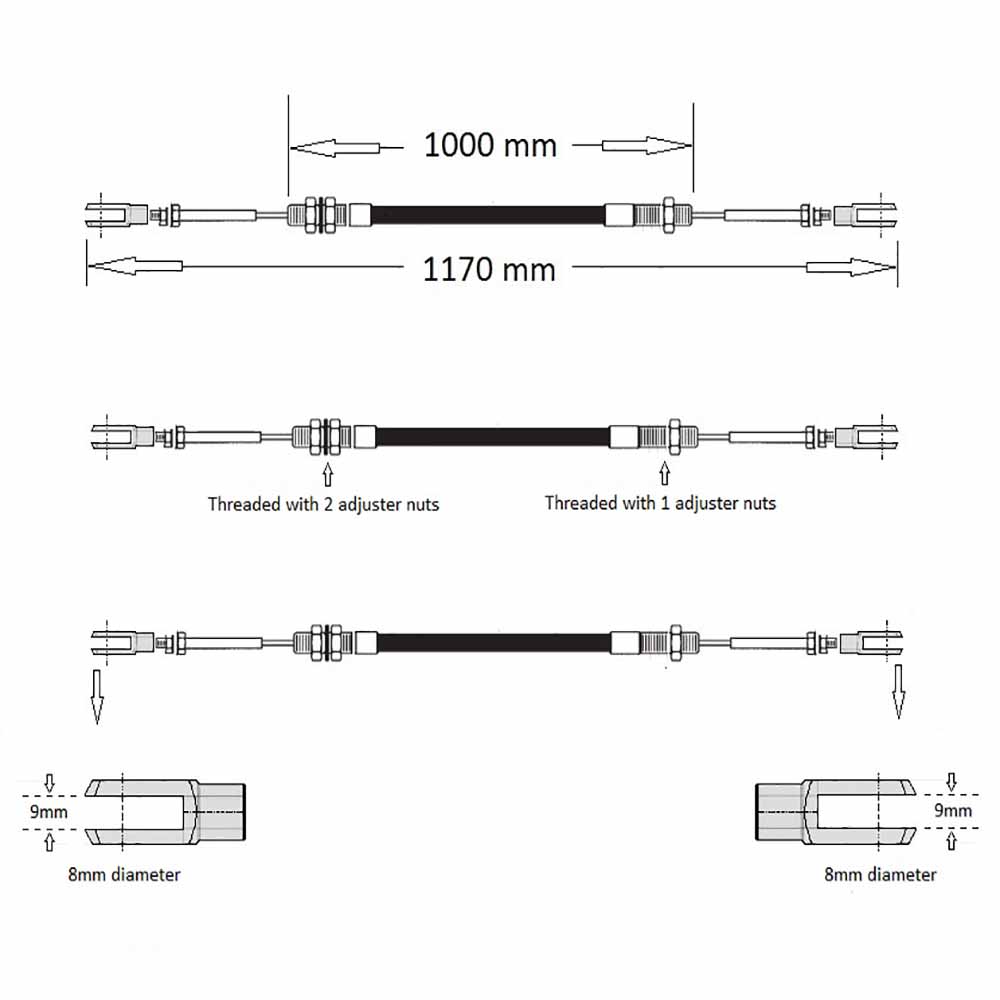

When fitted to dumper goes between the clutch pedal and drop arm on gearbox, the cable is approximately 1170mm long with a fixed clevis which has a sliding pin this general to the clutch pedal side and a fixed clevis with pin onto the drop arm of the gearbox. The outer sleeve is threaded both ends one end has a single adjuster nut the other has two adjuster nuts.
The clutch cable links the pedal to the drop arm on the gearbox to engage the thrust bearing. Frayed or broken cables are dangerous and must be replaced.
These parts are PES parts and not manufactured by the original equipment manufacturer. Original Manufacturer name, part number and description are quoted for reference purposes only and are not intended to indicate or suggest that our replacement parts are made by the OE.
