T127940

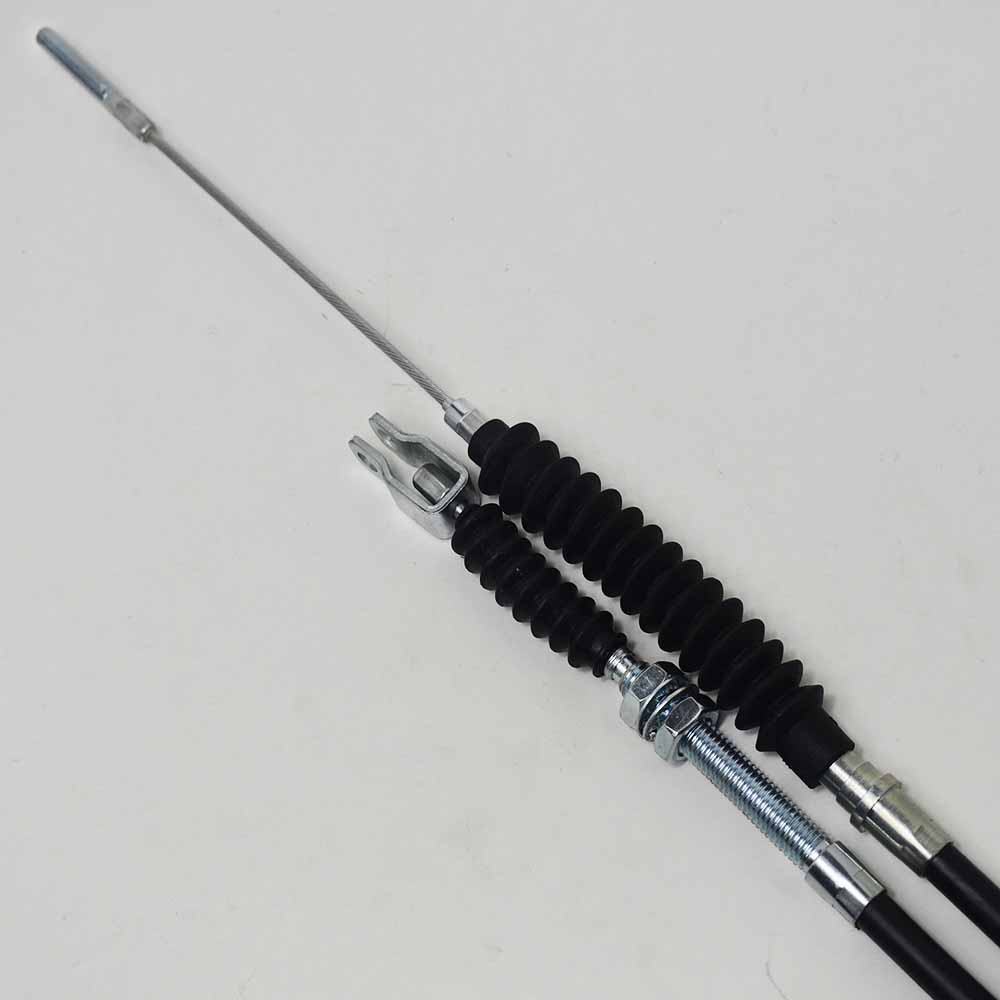

3700mm / 145” long Handbrake cable for Terex TA2 and TA3 dumper with Dana Spicer axles.
(full description below)
Handbrake cable TA2-TA3 Dana spicer axles
£32.22
37 in stock (more available to order)
37 in stock (more available to order)
Description

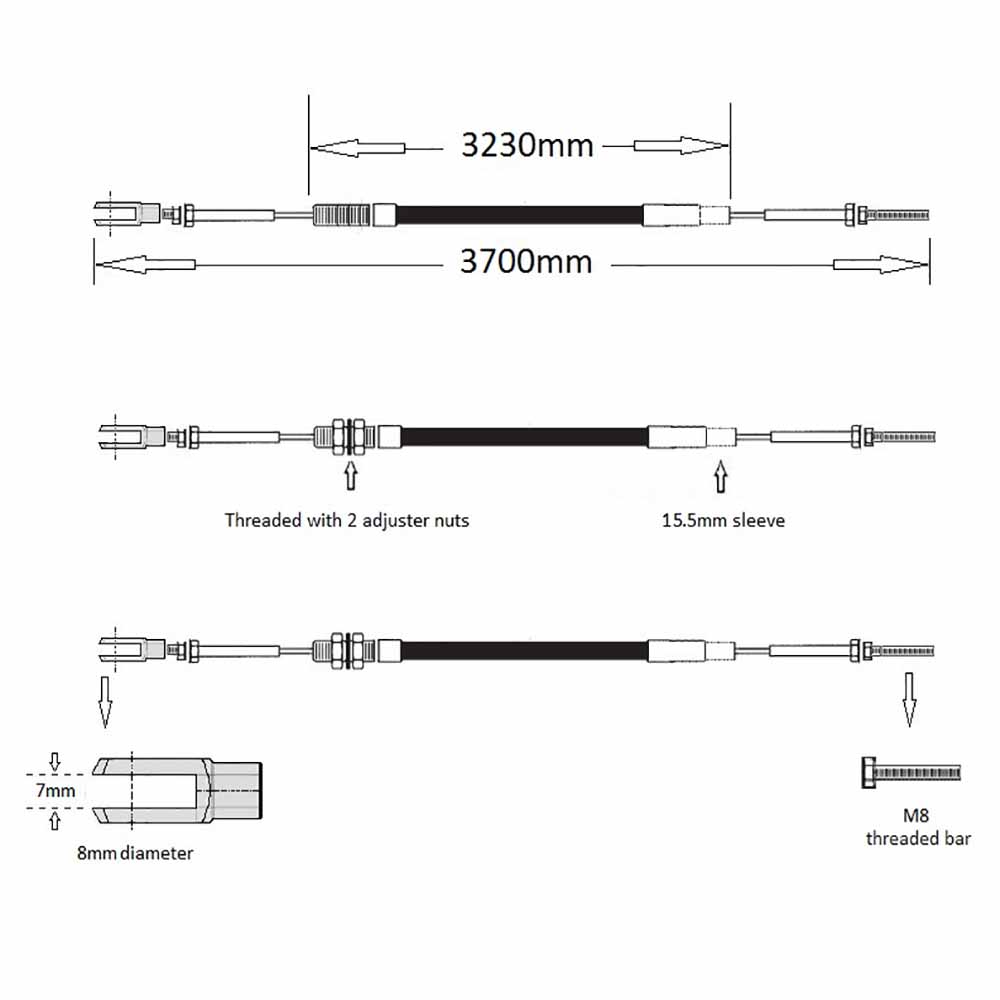

Cable general fits Terex TA2 and TA3 dumper when fitted with Dana Spicer axle, lockable over-centre handbrake lever and cable goes to the front axle. Cable is approximately 3700mm long with a fixed clevis to the handbrake lever and an M8 threaded bar to the axle brake arm, the outer sleeve is approx. 3230mm long from the tip of the thread which has two adjuster nuts one end to the tip of 15mm metal sleeve the other end.
The handbrake cable links the handbrake lever to the parking brake to stop the vehicle from rolling away. Frayed or broken cables are dangerous and must be replaced
Replaces part numbers T102228 and T102375
for TA3 Terex / Mecalac dumper with Kubota engine
TA3H Terex / Mecalac hydrostatic dumper with Kubota engine
+ Various other Terex / Mecalac dumpers
These parts are PES parts and not manufactured by the original equipment manufacturer. Original Manufacturer name, part number and description are quoted for reference purposes only and are not intended to indicate or suggest that our replacement parts are made by the OE.
