1230mm / 48.5” Throttle cable for Orline 2500 Thwaites dumper with Hatz engine
(full description below)
Throttle cable Orline 2500 Hatz engine
£20.16
Available on back-order
Available on back-order
Description
Cable generally fits Orline 2500 Thwaites 1.25ton dumper with a Hatz 1D80 engine and a Newage 5 wheel studded front axle.

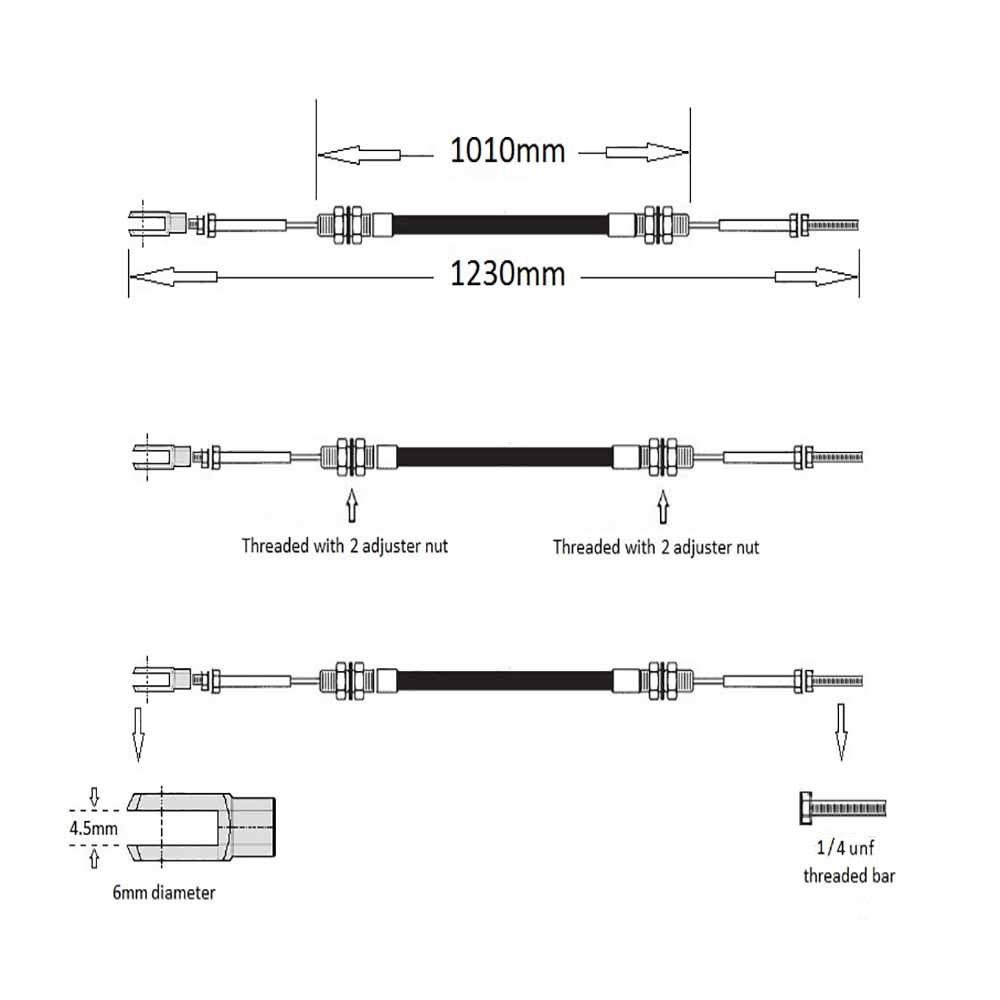

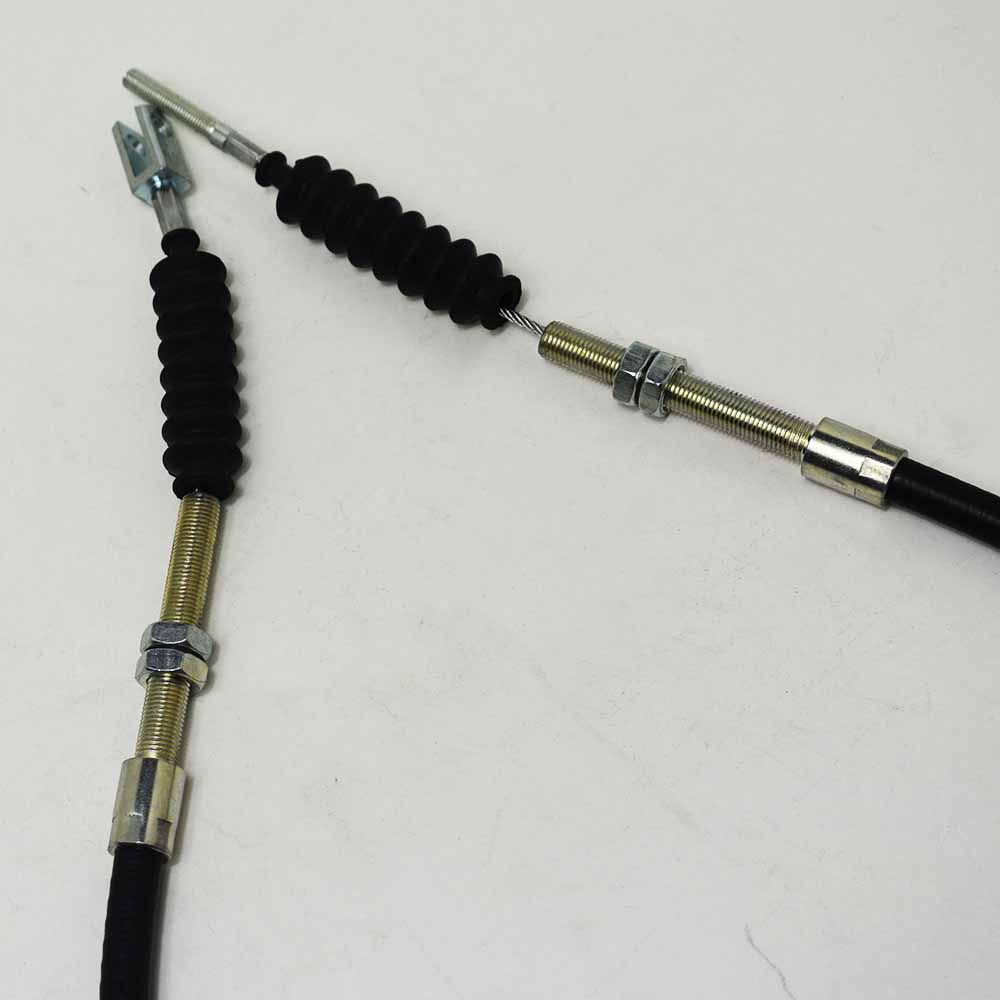

Cable is approximately 1230mm long with a fixed clevis on the throttle pedal side and a 1/4unf threaded bar onto the fuel injection pump controller side, the outer cable is approximately 1010mm long and threaded both ends and fitted with two adjuster nuts either end.
The throttle cable links the throttle pedal to the fuel injection pump controller. Frayed or broken cables are dangerous and must be replaced.
Genuine Thwaites part
OEM 15950, T15950
