1130mm / 44.5” Clutch cable for Orline 2500 Thwaites dumper with Hatz engine.
(full description below)

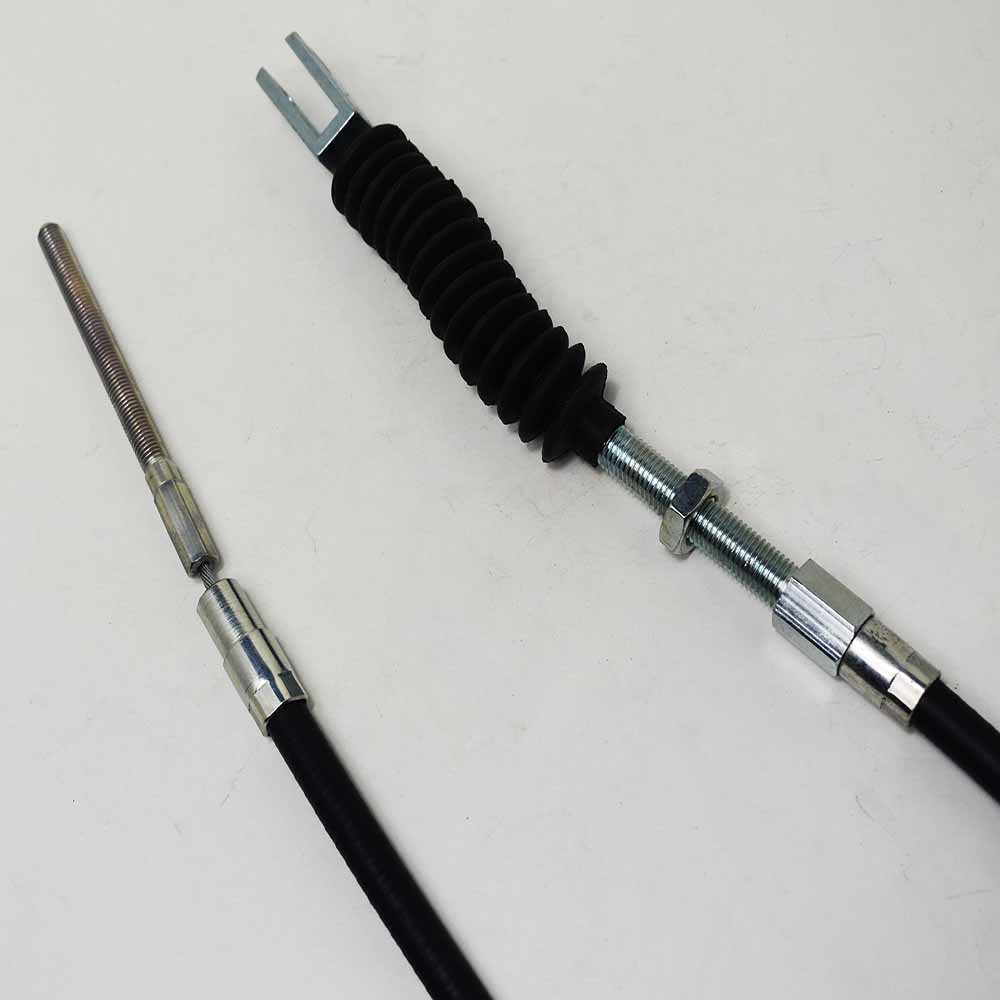

Clutch cable Thwaites Orline 2500 with Hatz engine
£39.36
1 in stock (more available to order)
1 in stock (more available to order)
Description
Cable generally fits Orline 2500 Thwaites 1.25ton dumper with a Hatz 1D80 engine and a Newage 5 wheel studded front axle.

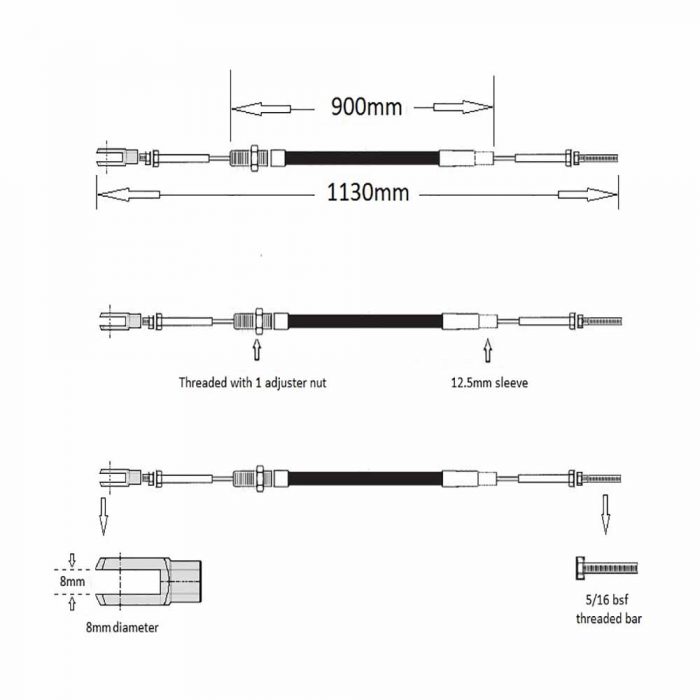

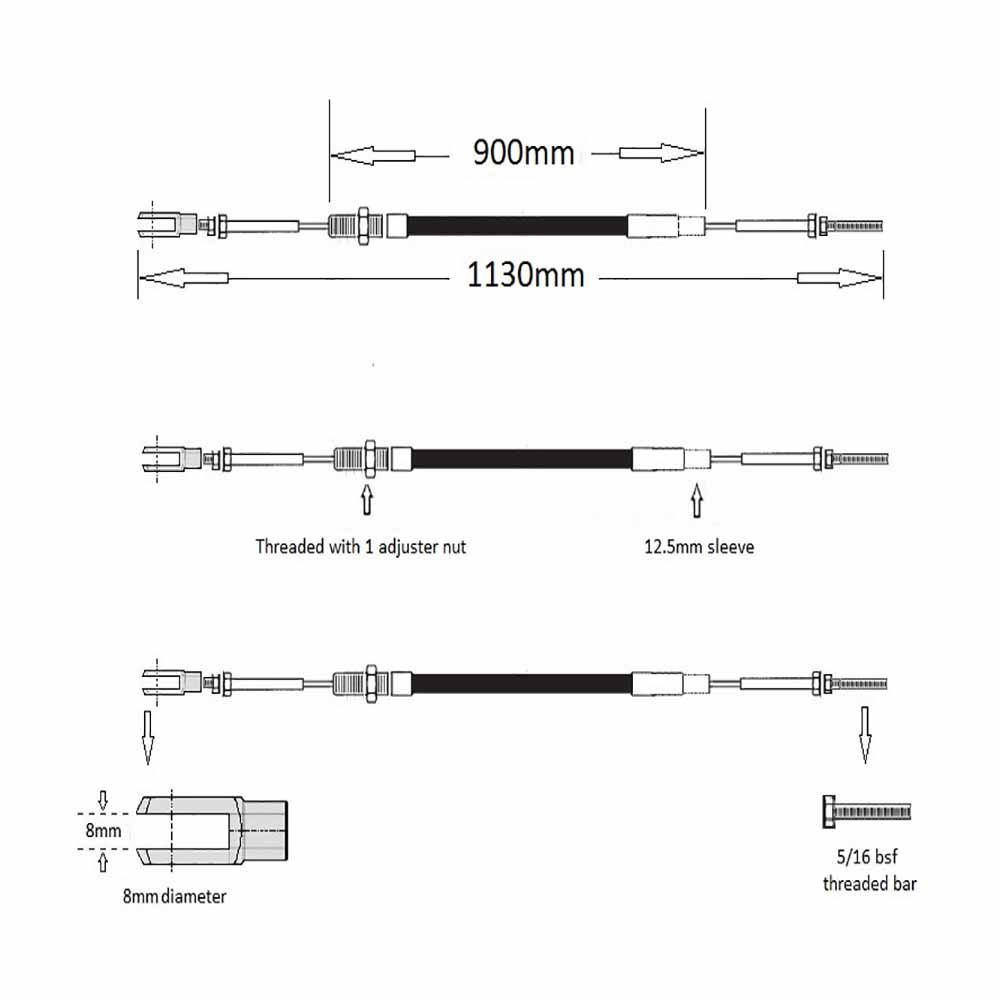

When fitted to dumper goes between the clutch pedal and drop arm on gearbox, the cable is approximately 1130mm long with a fixed clevis that goes onto the pedal side and a threaded bar that to the clevis on the gearbox drop arm. The outer sleeve is approximately 900mm long with a threaded one end which has a sinle adjuster nut and a 12.5mm sleeve the other end.
The clutch cable links the pedal to the drop arm on the gearbox to engage the thrust bearing. Frayed or broken cables are dangerous and must be replaced.
Genuine Thwaites Parts
OEM No. 15949, T15949
